16.0/70-24 14 PR BKT EM 936 169A2/152B E-2 TL

16.0/70-24 14 PR BKT EM 936 169A2/152B E-2 TL

Description

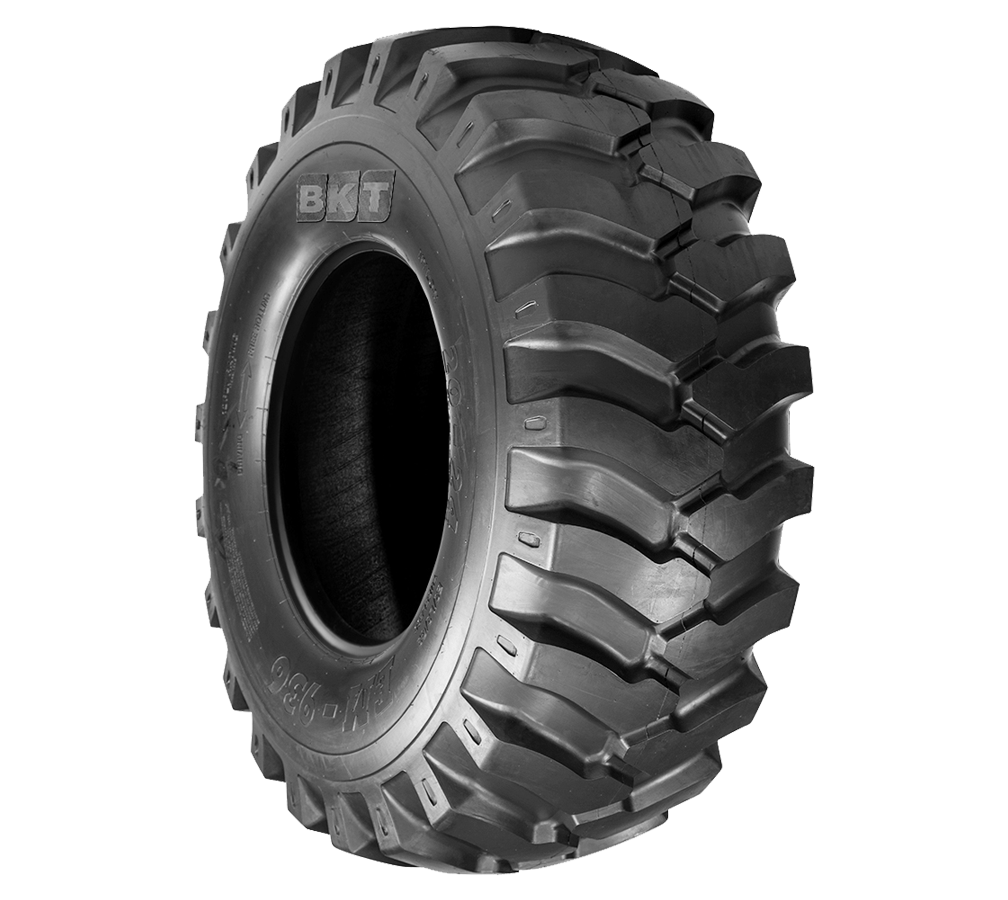

Sometimes referred to as a "rubber duck" tyre, the EM 936 is used on road-side excavators and telehandlers working in digging and loading operations. An aggressive pattern helps to ensure excellent traction in severe conditions and also good self-cleaning properties. A strong casing provides stability on the road and also driver comfort. Special compound versions are available across some sizes for use in more heavy duty/severe working conditions.

Features

  • Tyre designed for excavator applications.
  • Aggressive tread pattern for increased traction and self-cleaning.
  • Strong casing for stability and road-going properties.
  • Driver comfort.

Specification

Application
PLANT
Size
16.0/70-24
Equivalent Size 1
400/70-24
Brand
BKT
Pattern
EM 936
Load/Speed Index
169A2/152B
Ply Rating
14
TT/TL
TL
Construction
BIAS
Nominal Section Width
16.0
Profile
70
Rim
24
TRA
E-2
Recommended Rim
13SDC
Permitted Rim
13(DC)
Section Width
404 mm
Overall Diameter
1170 mm
Static Load Radius
575 mm
Rolling Circumference
3600 mm
Tread Depth
30.00 mm
Max Load (KG)/Speed (KM/H) 1
5800/10 WHEN 4.50 BAR
Max Load (KG)/Speed (KM/H) 2
3550/50 WHEN 3.50 BAR
Inflation Pressure Bar
4.50
Warranty
5 YEARS
